Product introduction:

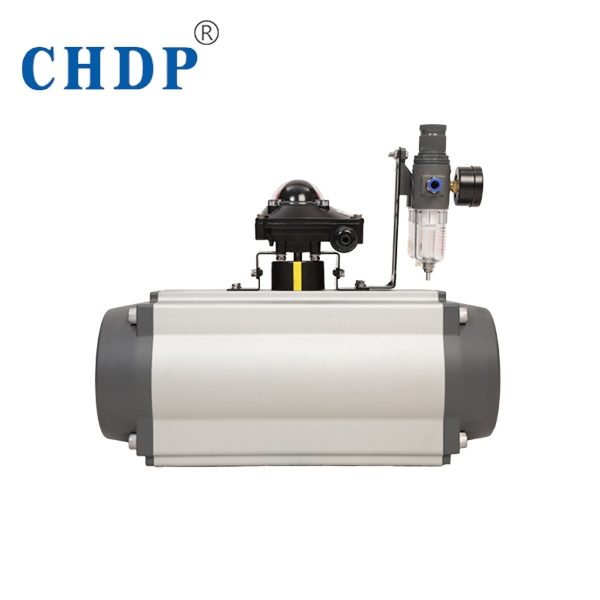

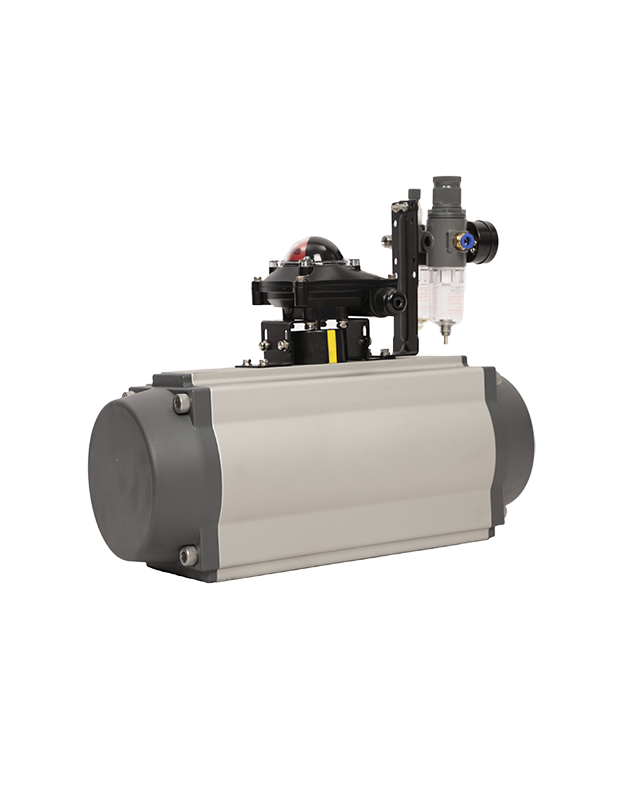

The pneumatic actuator generates thrust through compressed air, with large output thrust, high efficiency, stability and safety. The actuator and regulating mechanism of the pneumatic actuator are a unified whole, so the structure is simple and the weight is the lightest compared with other actuators of the same specification. With explosion-proof function, it has been well used in working environments with high requirements for safety factor, such as power plants and other places. Long service time.

Product features:

Action form: double acting and single acting

Structure: rack and pinion structure

Specifications: 8 different specifications

Standard stroke: 0 ° ~ 90 °

Torque range

Double acting: 6 ~ 2105nm

Single acting: 2.9 ~ 625nm

working temperature

Standard: - 20 ° ~ 80 ° (nitrile rubber O-ring)

Low temperature: - 40 ° ~ 80 ° (low temperature nitrile rubber O-ring + low temperature grease)

High temperature: - 20 ° ~ 150 ° (fluorine rubber O-ring + high temperature grease)

Working pressure: 2-8 bar

Applicable occasion: it is suitable for occasions requiring high corrosion resistance

Double acting and single acting actuators have the same size. The two types of action can be switched by installing and removing the spring. The spring can be disassembled quickly and safely.
